Hydraulic Controllers - Type 1

The original
MWC Hydraulic
Controller.

An industrial-strength electronic control station for Danfoss PVG 32 and PVG 120 proportional valves. Rotary speed dial, 3-position direction switch, IP65 alloy enclosure - twenty years proven on commercial fishing boats.

MWC Hydraulic Controller Type 1 - handheld unit with rotary dial and 3-position switch

About Type 1

Built for the deck.
Spec'd for duty.

The MWC CONTROLLER allows precision operation of longline drums and winches.

It controls Danfoss PVG 32 and PVG 120 Hydraulic Proportional Valves. Designed for the fishing industry, the controller allows precision operation over hydraulic longline drums, winches and cranes. It can be applied to any hydraulic application where Danfoss PVG 32 and PVG 120 are installed and fine adjustment of operation is desired.

The CONTROLLER can be used as an alternative to the Danfoss PVREL joystick - chosen by skippers and engineers who want a dedicated, marine-grade control surface in place of a generic input device.

IP65 Rated 12 - 28 V DC Australian Made Marine Grade

Features

Everything an operator
needs. Nothing they don't.

A rotary dial, a 3-position switch, and a marine-grade alloy enclosure. Set min and max speed limits internally; specify a custom cable length on order.

Specifications

The numbers
that matter.

The IP65-rated alloy enclosure stands up to spray, dust and grit. High-quality components rated for marine duty, voltages typical of vessel DC systems.

Enclosure dimensions
125mm × 80mm × 80mm
Enclosure material
Alloy
Enclosure rating
IP65
Input voltage
12 - 28 V DC
Compatible valves
Danfoss PVG 32 / PVG 120
Track record
20+ years in service

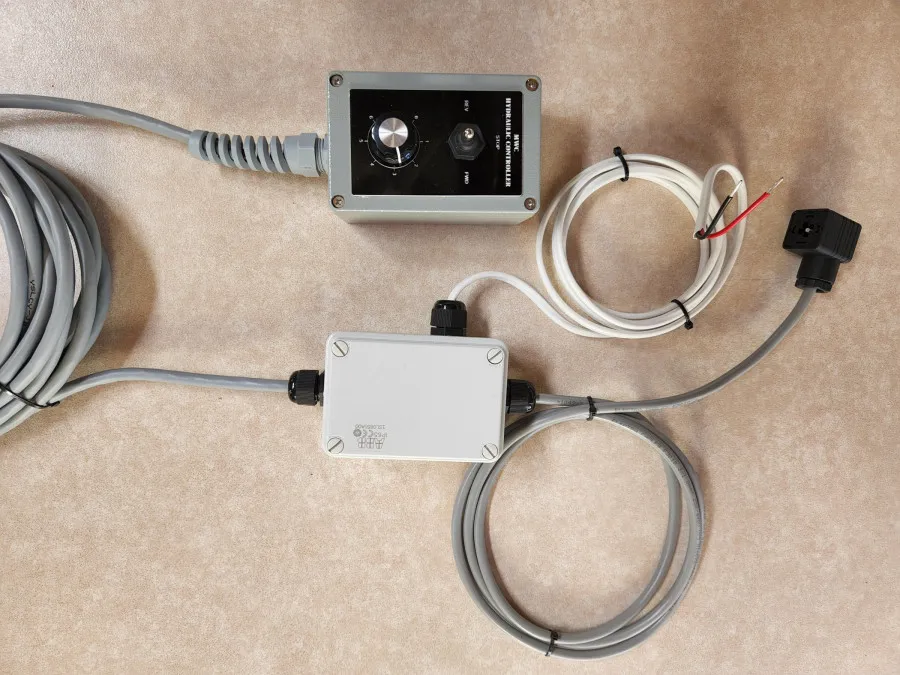

MWC Hydraulic Controller with installation kit including 8 m flex cable, junction box and DIN connector

Installation kit

8 m of 4-core flex cable, a junction box with black DIN connector for the PVG valve, and a DC power input rated 12 - 24 V. Plug-and-play onto an existing Danfoss valve. Custom cable lengths available on request.

Mounting

Handheld or panel mount.

The controller is supplied as a handheld unit with a length of cable to suit your install - wheelhouse, deck position or remote operating point. A panel-mount version is also available, with the cable exiting the unit through a gland for a flush wheelhouse fit.

The Type 1 in action

Watch a working install.

Michael Ballantyne, skipper of FV “Tahnee B” - Eden, NSW FV Tahnee B - Michael Ballantyne's fishing boat, Eden NSW

FV Tahnee B - Eden, NSW

I have been using the MWC Hydraulic Controllers for over 15 years to control the Danfoss PVG 32 hydraulic valve that drives the longline drum on my fishing boat “Tahnee B”. In our fishing operations, it is required that we start, stop and accurately set and adjust speed of our winch for “shooting away” and “winching in.” The MWC controller has proven to be effective, longlasting and reliable. It allows myself and the crew optimum control of speed and direction of our drum to maximise our fishing catch.

Michael Ballantyne

FV “Tahnee B” - Eden, NSW

Also out there

FV Instagator -
tuna longline, hauling.

The Instagator's tuna longline drum is operated by an MWC Hydraulic Controller. The same controller, doing the same job - fine-adjustment hauling, day in, day out.

Another example of MWC controllers in regular commercial use on Australian fishing fleets.

FV Instagator - tuna longline fishing vessel running an MWC Hydraulic Controller
Recent catch on FV Instagator - tuna longline drum operated by MWC Hydraulic Controller
FV Instagator - recent catch, longline drum operated by MWC Hydraulic Controller

Talk to Matthew

Sort the right setup
for your install.

Pricing and orders are handled directly. Call Matthew or send an enquiry - we'll talk through cable lengths, mounting style, and your hydraulic setup.

0427 260 443 Send an enquiry

Looking at the newer Type 2? See the Type 2 →
